Addressable Modules
M9000A IO 0/1 Ext 24V (IP66)
Addressable Module with 1 Output, Rated at 24VDC/2A
M9000A IO 0/1 Ext 24V is an addressable 1‑output module.
The module monitors and controls a relay output rated at 24VDC/2A and is powered by an independent 24VDC/2A supply, separate from the loop.
- Addressable Module with 1 Output, with a load capacity of 24VDC/2A;
- Outputs – Potential‑free relay output, rated 30VDC/2A;
- Certified EN 54-18 and EN 54-17;
- Engineered for controlling extinguishing valves, sounders, and other devices with a load rating of 24VDC/2A;
- Power consumption in Duty condition: 600 µА;
- Consumption in Alarm mode: 2 mА;
- Power supply from the control panel;
- Independent power supply for the controllable output 24VDC/2A controllable;
- Address programming via the DMProg programmer or directly from the control panel;
- Integrated isolator;
- Plastic housing, suitable for wall mounting or DIN‑rail installation;
Optional: M9000A IO 0/1 Ext 24V-IP66 mounted in a sealed IP66 enclosure with a transparent cover.
M9000A IO 0/4 (IP66)
Addressable Module with 4 Outputs
M9000A IO 0/4 is an addressable 4‑output module.
The module monitors and controls 4 relay outputs.
- Outputs – Relay (NC, COM, NO) – 5–30VDC/1A
- Certified EN 54-18 and EN 54-17;
- Power consumption in Duty condition: 600 µА;
- Consumption in Alarm mode: 2 mА;
- Power supply from the control panel;
- Address programming via the DMProg programmer or directly from the control panel;
- Integrated isolator;
- Plastic housing, suitable for wall mounting or DIN‑rail installation;
Optional: M9000A IO 0/4-IP66 mounted in a sealed IP66 enclosure with a transparent cover.

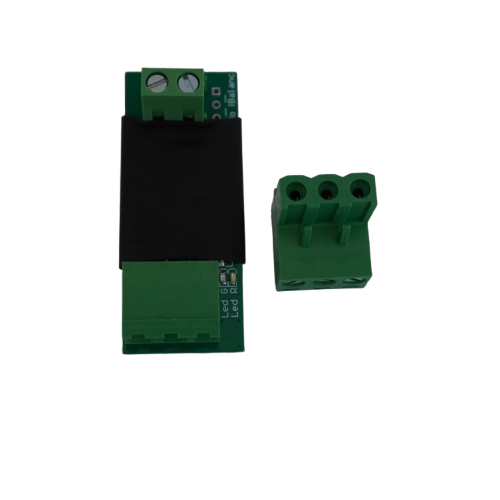

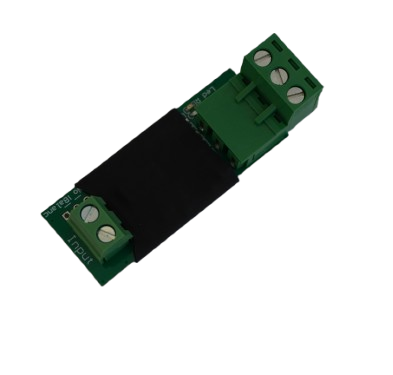

M9000A IO 1/0
Addressable Module with 1 Input
M9000A IO 1/0 is an addressable 1-input module.
The module monitors 1 relay input.
- Input – supervised.
- According to the requirements of EN 54-18;
- Power consumption in Duty condition: 400 µА;
- Consumption in Alarm mode: 1.5mА;
- Power supply from the control panel;
- Address programming via the DMProg programmer or directly from the control panel;
- Without integrated isolator;
- PCB version for mounting in back boxes used with emergency switches in bathrooms and other applications.
M9000A IO 3/0 (IP66)
Addressable Module with 3 Inputs
M9000A IO 3/0 is an addressable module with 3 inputs. The module supervises three input signals.
- Inputs – supervised;
- Certified EN 54-18 and EN 54-17;
- Power consumption in Duty condition: 600 µА;
- Consumption in Alarm mode: 2mА;
- Power supply from the control panel;
- Address programming via the DMProg programmer or directly from the control panel;
- Integrated isolator;
- Plastic housing, suitable for wall mounting or DIN‑rail installation;
Optional: M9000A IO 3/0 - IP66 mounted in a sealed IP66 enclosure with a transparent cover.

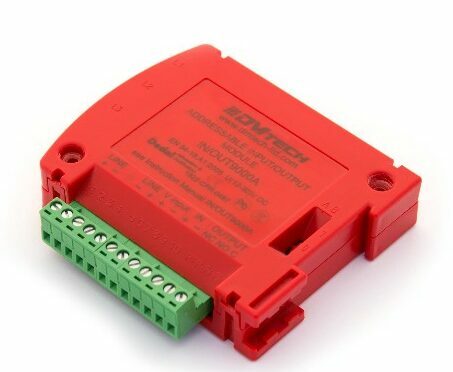

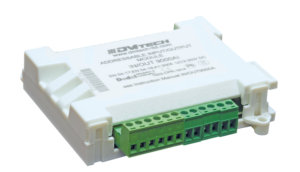

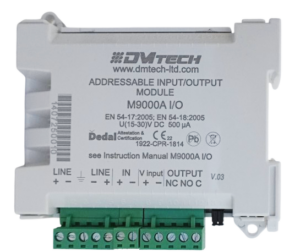

M9000A IO 1/1 (IP66)
Addressable Module with 1 Input and 1 Output
- Addressable Module with 1 Input and 1 Output ;
- Input – supervised;
- Output – Relay contacts (NC, COM, NO), rated 250V AC / 5A;
- Certified EN 54-18 and EN 54-17;
- Power consumption in Duty condition: 600 µА;
- Consumption in Alarm mode: 2mА;
- Power supply from the control panel;
- Address programming via the DMProg programmer or directly from the control panel;
- Integrated isolator;
- Plastic housing, suitable for wall mounting or DIN‑rail installation

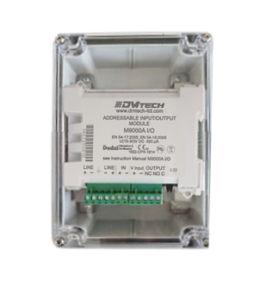

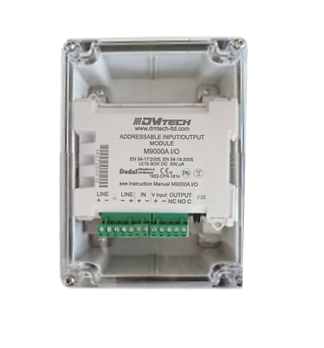

Optional: M9000A IO 1/1 - IP66 mounted in a sealed IP66 enclosure with a transparent cover.
M9000A IO 1/1 250V - 5A(IP66)
Addressable Module with 1 Input and 1 Input, Rated at 250V/5A
M9000A IO 1/1 250V-5A is an addressable module with 1 input and 1 output.
It supervises a single input signal and drives a relay output rated at 250V / 5A.
- Input – supervised;
- Output – Relay contacts (NC, COM, NO), rated 250V AC / 5A;
- Certified EN 54-18 and EN 54-17;
- Power consumption in Duty condition: 600 µА;
- Consumption in Alarm mode: 2mА;
- Power supply from the control panel;
- Address programming via the DMProg programmer or directly from the control panel;
- Integrated isolator;
- Plastic housing, suitable for wall mounting or DIN‑rail installation;
Optional: M9000A IO 1/1 250V-5A - IP66 mounted in a sealed IP66 enclosure with a transparent cover.
M9000A IO 2/2(IP66)
Addressable Module with 2 Inputs and 2 Inputs
M9000A IO 2/2 is an addressable module with 2 inputs and 2 outputs. The module supervises two input signals and drives two relay outputs.
- Inputs – supervised;
- Outputs – Relay (NC, COM, NO) – 5-30VDC/1A;
- Certified EN 54-18 and EN 54-17;
- Power consumption in Duty condition: 600 µА;
- Consumption in Alarm mode: 2mА;
- Power supply from the control panel;
- Address programming via the DMProg programmer or directly from the control panel;
- Integrated isolator;
- Plastic housing, suitable for wall mounting or DIN‑rail installation;
Optional: M9000A IO 2/2 - IP66 mounted in a sealed IP66 enclosure with a transparent cover.

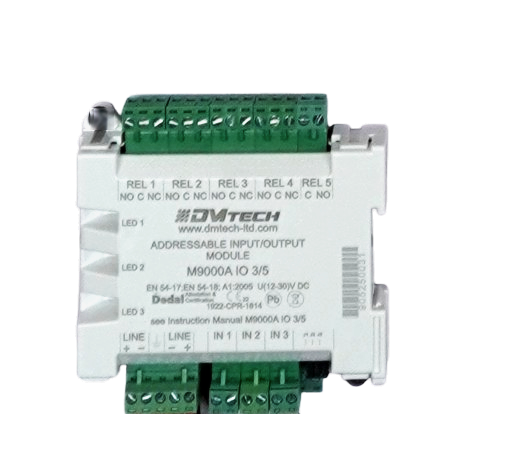

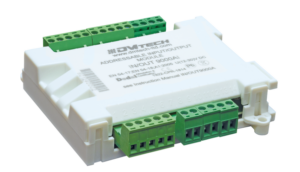

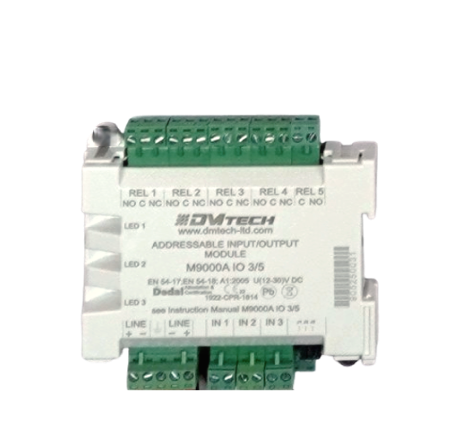

M9000A IO 3/5(IP66)
Addressable Module with 3 Outputs and 5 Inputs
M9000A IO 3/5 is an addressable module with 3 inputs and 5 outputs. The module supervises three input signals and drives five relay outputs.
- Inputs – supervised;
- Outputs – Relay (NC, COM, NO) – 5-30VDC/1A;
- Certified EN 54-18 and EN 54-17;
- Power consumption in Duty condition: 600 µА;
- Consumption in Alarm mode: 2mА;
- Power supply from the control panel;
- Address programming via the DMProg programmer or directly from the control panel;
- Integrated isolator;
- Plastic housing, suitable for wall mounting or DIN‑rail installation;
Optional: M9000A IO 3/5 - IP66 mounted in a sealed IP66 enclosure with a transparent cover.

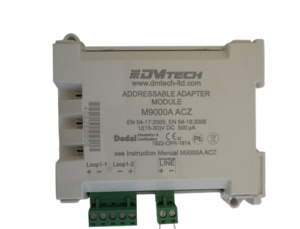

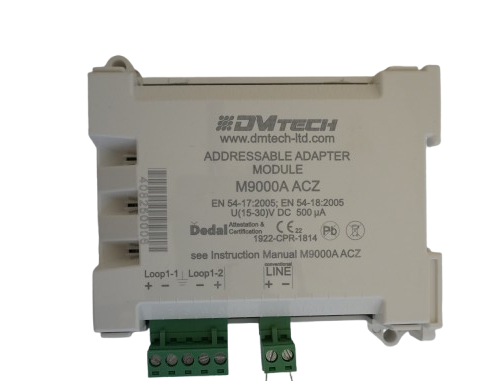

M9000A IO ACZ(IP66)
Addressable Module for Conventional Zone
M9000A IO ACZ is an addressable module for a conventional zone. The module is engineered for monitoring and connecting conventional fire detectors to an addressable panel.
- Addressible Module for Conventional Zone;
- End‑of‑line resistor (EOL) for the conventional zone – 4.7kΩ / 0.6W
- Certified EN 54-18 and EN 54-17;
- Power consumption in Duty condition: ≤ 700μА;
- Consumption in Alarm mode: 27 mА.
- Power supply from the control panel;
- Address programming via the DMProg programmer or directly from the control panel;
- Integrated isolator;
- Plastic housing, suitable for wall mounting or DIN‑rail installation
Optional: M9000A IO ACZ - IP66 mounted in a sealed IP66 enclosure with a transparent cover.
МL9000А1 / Expansion Module for Addressable Fire Alarm Panel FP9000A-6
The module expands the panel configuration by 1 loop and up to 250 addressable devices.
Functional characteristics
- 1 Loop (DMTech protocol)
- Devices per loop: up to 250 units
- Load capacity per loop: up to 700mA
- Dimensions 120x32x30
