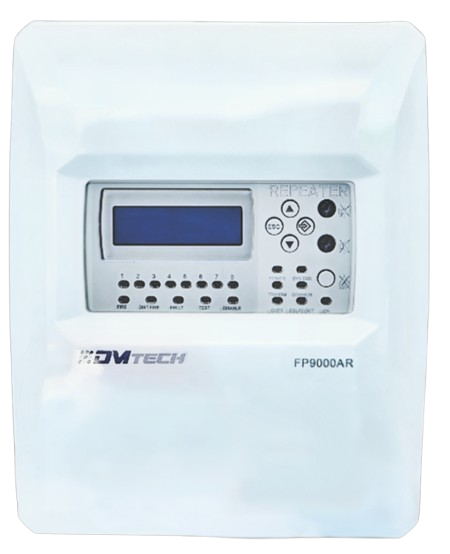

Addressable Repeater FP9000A R
Purpose
The remote display and control panel FP9000A R is designed to optimize the work of users of Fire Alarm Systems. The product is compatible with the addressable fire alarm system FP9000A. The panel is designed to exchange information with one or more remote addressable fire alarm panels FP9000A-1. Real-time access to all fire alarm panels connected to the repeater is available via Internet. The product:
- receives and visualizes information about the status of remote fire alarm panels;
- forms a controlling influence , to areas from remote fire alarm centers, for their forced exit from the “Fire” state.
Functional features
- Up to 8 remote control units connected to the repeater;
- Indication of the state of fire and/or damage from each zone and fire detector of the remote control units connected to it;
- Forming a management impact to a remote headquarters;
- Viewing the parameters and setting of each of the central units connected to it;
- Clear screen for easy functionality;
- LCD display for visualizing the status of the remote control units and receiving commands from the user;
- LED indication and sound signaling in emergency and extreme situations;
- User oriented test modes;
- Built-in clock for astronomical time;
- Interfaces for communication with:
- remote control units;
- FP9000A-RS485;
- PC – LAN Ethernet;
- Indications of registered events:
- Light – LED;
- Text – liquid crystal display 7″, 800×600, illuminated;
- Sound – built-in sound signal;
- Power supply (conforming to EN 54-4);
- Voltage – 230V AC;
- Maximum current – 500 mA;
- Dimensions – 375x300x90;
- Weight – 3 kg.
