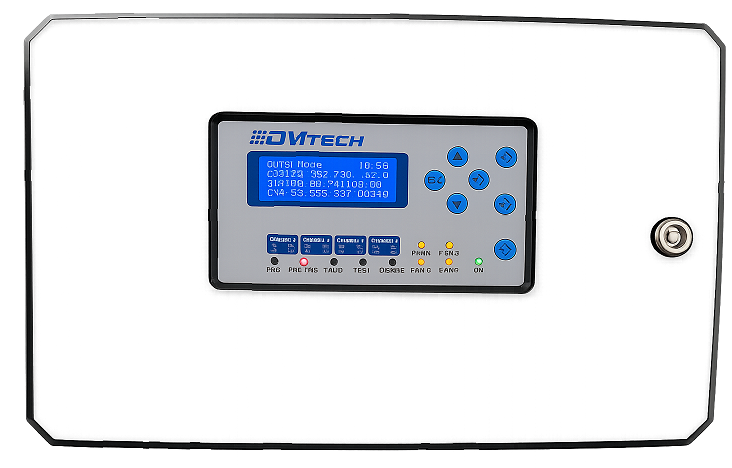

Aspirating Smoke Detector: D9000Flow – 1/2/3/4

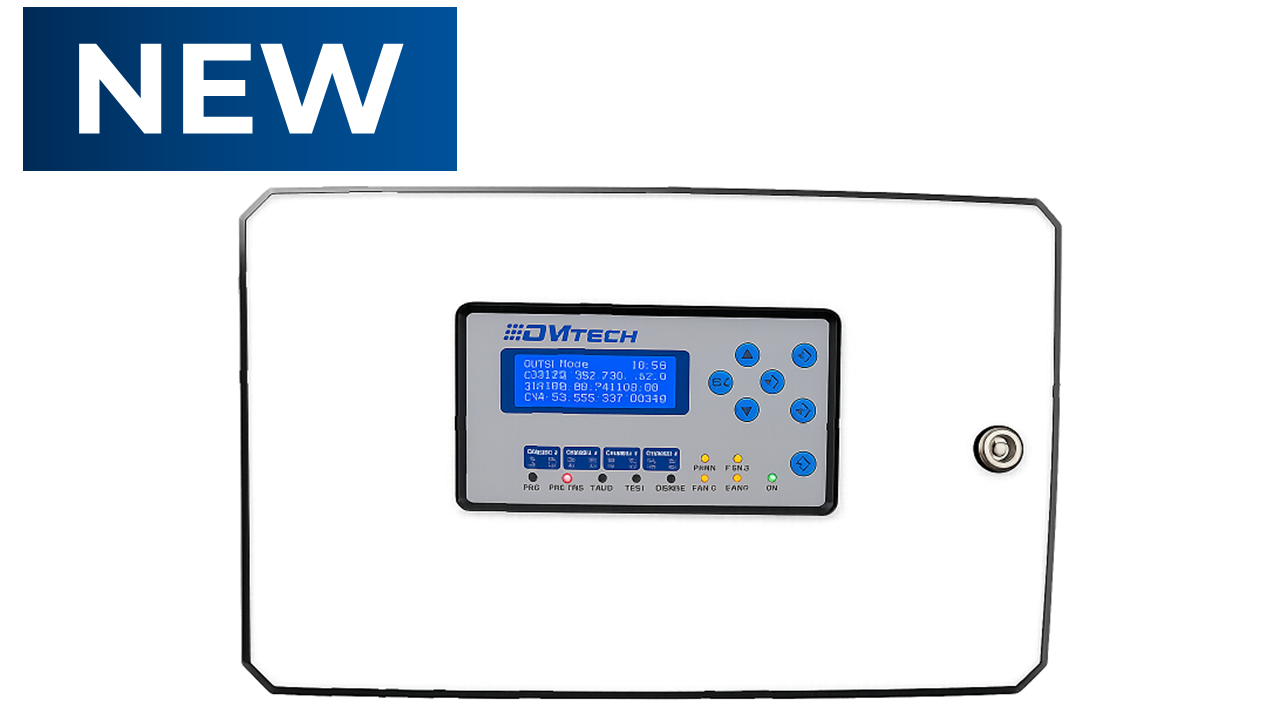

NEWLY DEVELOPED
ASD
detector
D9000Flow - 1/2/3/4
Up to 4 independent detector channels (modular configuration)
Aspiration via pipe network up to 250 m and over 50 sampling points
Automatic drift compensation
Thermal analysis of the airflow
Significant reduction in false alarms and earlier detection
Supports branched or linear pipe topologies/ configurations
Features
The DMTech ASD aspirating smoke detector is a highly sensitive detector for early detection of fire, engineered to analyze air samples via an aspiration system.
The device operates on the principle of optical smoke aerosol detection by analyzing light scattering and attenuation, utilizing an innovative combination of optical methods to achieve significantly increased sensitivity and reliability.
The detector can operate standalone or integrated into a fire alarm system.
Innovative Technology
The device implements a patented method (BG3757U1) for the detection of smoke aerosols, based on two light sources—blue (430nm) and infrared (870–900nm)—and two photosensitive receivers.
A key innovation is the combined analysis of three signals: scattered infrared light, scattered blue light, and blue light attenuation.
This enables the detection of “invisible” smoke (smoke without visible coloration), significantly reduces false alarms, and ensures earlier detection
Software architecture and functionality
The device utilizes dedicated embedded software for real-time control, analysis, and communication.
High-precision smoke aerosol analysis for early fire detection
Analog signal processing
Aspiration turbine control
Pollution adaptation
Indication and Display: 4 × 20 character LCD display, LED indication, control buttons for the detector and system software
USB interface
RS485 (Modbus) interface
Wi-Fi interface
Technical Parameters:
Power Supply: (21 – 28) V DC
Current Consumption: up to 200 mA
Dimensions: 380 × 280 × 90 mm
Weight: 3.2 kg (fully configured)
Interfaces and Outputs: Fire, Fault, communication interfaces
Common Applications
It is suitable for facilities with challenging detection conditions, such as:
- Industrial facilities
- Power generation utilities (Technical / Equipment rooms, Electrical cabinets)
- IT infrastructure (Server rooms)
- Warehouses and logistics centers
- Cold storage rooms / Walk-in freezers
